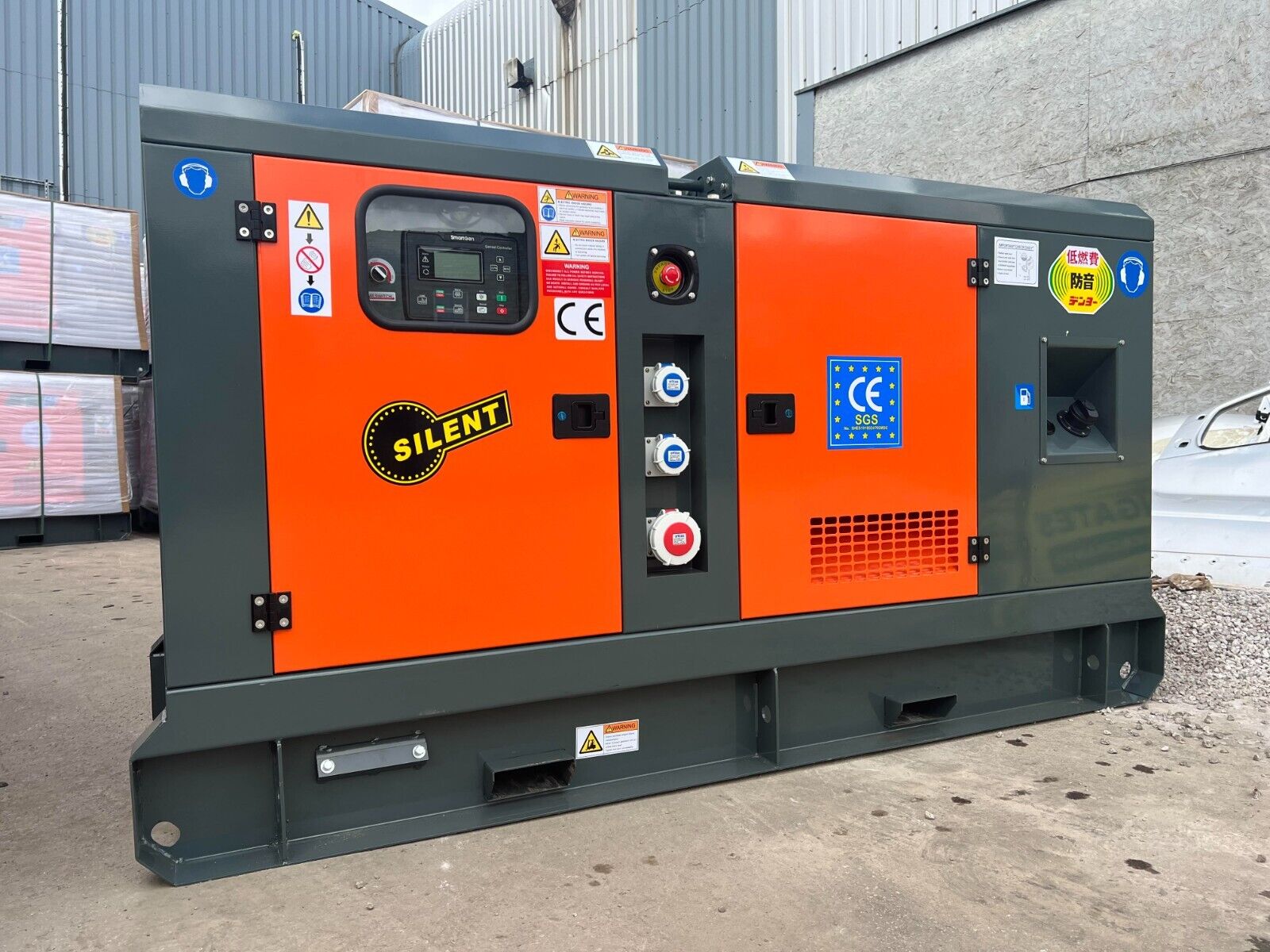

ASHITA 50 kVA Three & Single Phase Silent Diesel Generator

The ASHITA AG3-50E 50VA emergency generator provides a consistent output of 40 kW / 50 kVA. It boasts compact dimensions, measuring 2,200 millimeters in length, 850 millimeters in width, and 1,120 millimeters in height, making it exceptionally space-efficient for its performance category. Weighing only 870 kg, it is relatively light. Similar to all ASHITA emergency generators, the AG3-50E is designed for easy transportation, installation, operation, and maintenance.

Primary Specifications:

Maximum Power [kW/kVA/HP]: 44 / 55 / 59.82 Continuous Power [kW/kVA/HP]: 40 / 50 / 54.39 Nominal Voltage [V]: 230 / 400 Frequency [Hz]: 50 Speed [rpm]: 1500 Power Factor [cos φ]: 0.8

Housing Specifications and Weight:

Dimensions (L x W x H) [mm]: Approximately 2200 x 850 x 1120 Dry Weight [Kg]: 870 Tank Capacity [L]: 50 Lockable Housing: Yes Transport Features: Forklift pockets (external distance 1.00m) / crane eyelets Housing Colors: RAL 7012 / RAL 3000

Autonomy:

Running Time [approx. hours]: 8-10 per tank filling

Operating Noise:

Sound Pressure Level LPA [7m] [dB(A)]: 75

Engine Details:

Brand: Ricardo Model: ZH4102ZD/44KW Fuel Type: Diesel Emissions Level: Non Emission Certified Number of Cylinders: 4 Displacement [L]: 3.76 Compression Ratio: 17:1 Bore x Stroke [mm x mm]: 102 x 115 CO² Emissions ka (Stage III) CO² Test Procedure ka (Stage III) Cycle: Four-stroke Speed Controller: Mechanical Speed [rpm]: 1500 Starter: Electric with battery On-board Voltage [V]: 12V / 24V Battery Voltage [Ah]: 230 / 400 Cooling System: Water cooling Thermostat (°C): 71-85 Maximum Water Temperature: 98 Exhaust System: Soundproofed Maintenance Interval: 1 x per year or every 250 operating hours (whichever comes first) Filter & Oil Change: 1 x per year or every 250 operating hours (whichever comes first)

Generator Specifications:

Brand: Stamford Model Name: YHG/40kW 1500 rpm Generator System: Brushless, self-exciting, AVR with automatic voltage regulation, 100% copper wire winding Generator Type: Synchronous Insulation Class: H Voltage Regulation: Electronic IP Protection Class: 23 Number of Phases: 3 Frequency: 50 Hz Frequency Tolerance: ≤ ± 1% Voltage Stability at Speed Deviation -5% +30 % (%): 1 Power Factor: 0.8 cos φ (lagging) Voltage Regulator: AVR Outlet Mode: 3 phase conductors / 1 neutral conductor Outputs: 1 x CE 1-phase 16A / 1 x CE 3-phase 16A / 1 x CE 3-phase 32A / terminal strip for direct House feed or ATS Circuit Breaker: Main circuit breaker Degree of Protection: IP23 Altitude: ≤ 1000m Excitation System: Brushless, self-exciting, AVR with automatic voltage regulation, 100% copper wire winding Network Form: TT network Telephone Influence Factor (TIF): ≤ 50 THF ≤ 2% Voltage Regulation, Stationary State: ≤ ± 1% Transient State Voltage: ≤ -15%~+20%

Control Panel Details:

Brand: SmartGen Model Name: HGM 6120N LCD Display Resolution: 132 x 64 pixels Backlit Adjustable Display Languages: Chinese, English, Spanish, Russian, Portuguese, Turkish, Polish, and French Operation: Physical push button Screen: Acrylic glass Screen & Buttons: Silica gel panel and buttons can be used for safe operation in case of temperature fluctuations, Connections: RS485 communication port, CANBUS port (connected to the electronic injection with J1939) Monitoring Function: Operating status, error conditions, and measured values are displayed on the LCD display and the LEDs on the front

Resources:

We use the following operating resources in original equipment quality. Please make sure to use these or replace them with at least technically equivalent qualities. If you have any further questions, please consult the resources FAQ and/or contact your petroleum dealer or gas station.

Oil / Tank Capacity in Liters: ROWE Hightec Formula Super SAE 15W-40 / 12 liters Antifreeze / Tank Capacity in Liters: ROWE Hightec Antifreeze AN-SF 12+ / 14.5 liters Fuel / Tank Capacity in Liters: Premium Diesel** depending on availability / 50 liters

*With a mixing ratio of 1:1, 50% of the tank volume of water or antifreeze is required. **SHELL© V-Power, Aral@ Ultimate, or similar.
